Human 4-1BB Ligand / TNFSF9 (71-254) Protein, Fc Tag, low endotoxin (active trimer) (MALS verified)

Human 4-1BB Ligand / TNFSF9 (71-254) Protein, Fc Tag, low endotoxin (active trimer) (MALS verified)

分子别名（Synonym）

4-1BB Ligand,TNFSF9,CD137L

表达区间及表达系统（Source）

Human 4-1BB Ligand (71-254), Fc Tag, low endotoxin (active trimer) is expressed from human 293 cells. It contains AA Arg 71 - Glu 254

Predicted N-terminus: Pro

蛋白结构（Molecular Characterization）

This protein carries a human IgG1 Fc tag at the N-terminus.

The protein has a calculated MW of 87.5 kDa. The protein migrates as 150-180 kDa under non-reducing (NR) condition (SDS-PAGE) due to glycosylation.

内毒素（Endotoxin）

Less than 0.1 EU per μg by the LAL method.

无菌（Sterility）

The sterility testing was performed by membrane filtration method described in USP <71> and Eur. Ph. 2.6.1.

纯度（Purity）

>95% as determined by SDS-PAGE.

>90% as determined by SEC-MALS.

制剂（Formulation）

Lyophilized from 0.22 μm filtered solution in PBS, pH7.4. Normally trehalose is added as protectant before lyophilization.

Contact us for customized product form or formulation.

重构方法（Reconstitution）

Please see Certificate of Analysis for specific instructions.

For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.

存储（Storage）

For long term storage, the product should be stored at lyophilized state at -20°C or lower.

Please avoid repeated freeze-thaw cycles.

This product is stable after storage at:

1. -20°C to -70°C for 12 months in lyophilized state;

2. -70^°C for 3 months under sterile conditions after reconstitution.



电泳（SDS-PAGE）

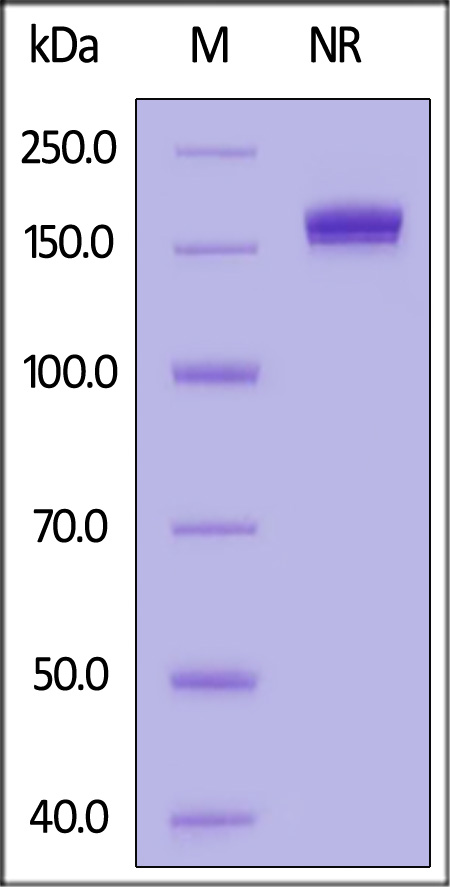

Human 4-1BB Ligand (71-254), Fc Tag, low endotoxin (active trimer) on SDS-PAGE under non-reducing (NR) condition. The gel was stained overnight with Coomassie Blue. The purity of the protein is greater than 95%.

The purity of Human 4-1BB Ligand (71-254), Fc Tag, low endotoxin (active trimer) is more than 90% and the molecular weight of this protein is around 182-222 kDa verified by SEC-MALS.

Report



活性（Bioactivity）-ELISA

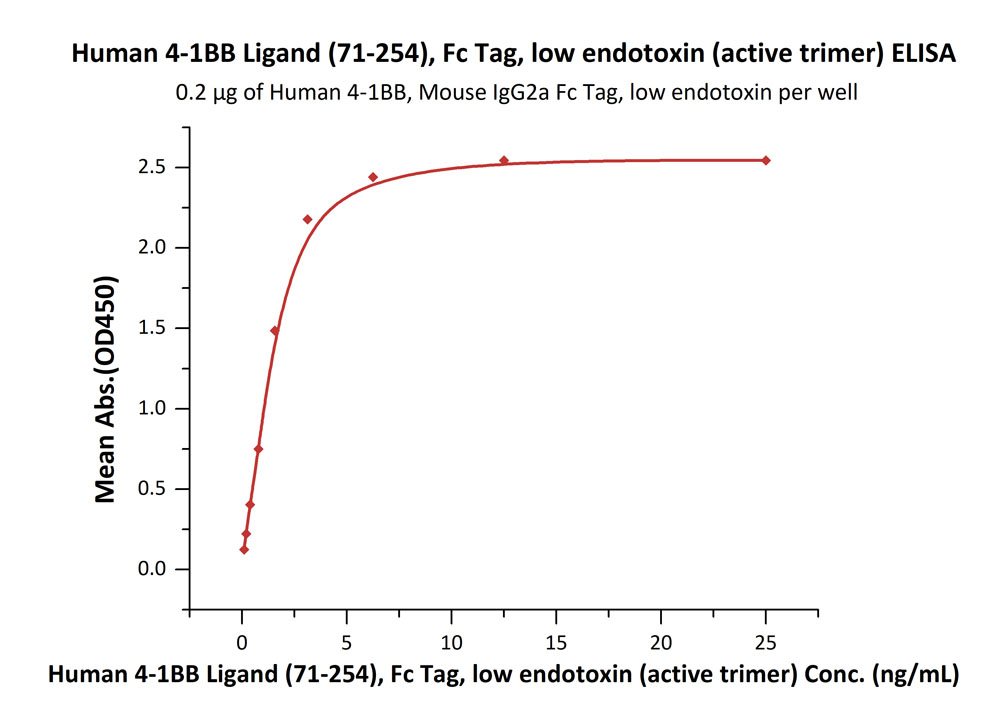

Immobilized Human 4-1BB, Mouse IgG2a Fc Tag, low endotoxin  at 2 μg/mL (100 μL/well) can bind Human 4-1BB Ligand (71-254), Fc Tag, low endotoxin (active trimer)  with a linear range of 0.1-6 ng/mL (QC tested).

Protocol

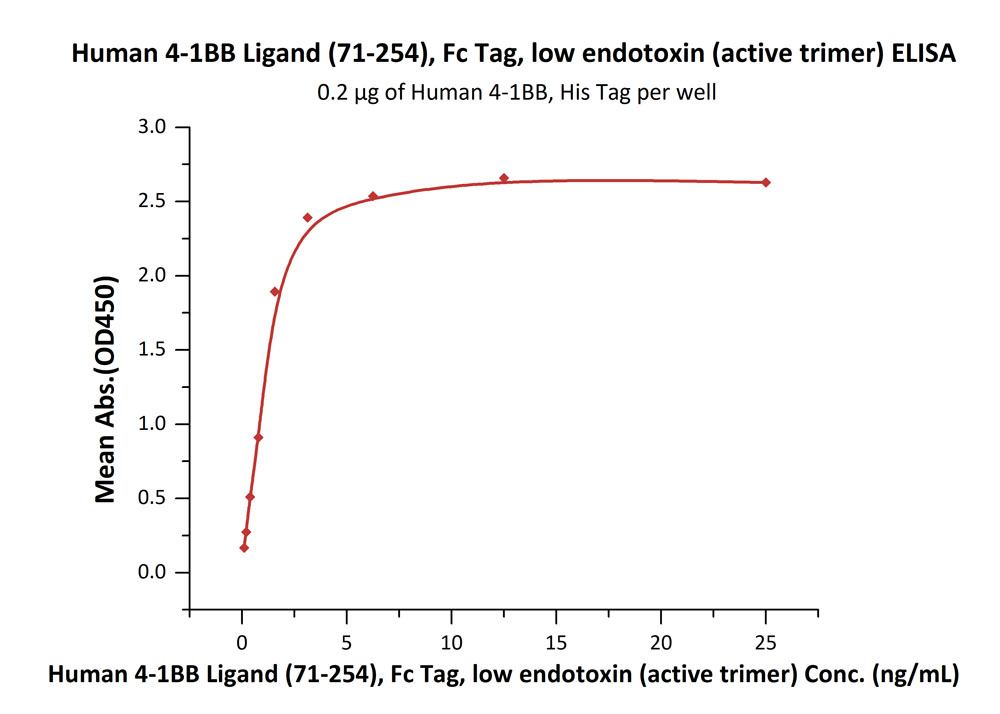

Immobilized Human 4-1BB, His Tag  at 2 μg/mL (100 μL/well) can bind Human 4-1BB Ligand (71-254), Fc Tag, low endotoxin (active trimer)  with a linear range of 0.1-3 ng/mL (Routinely tested).

Protocol

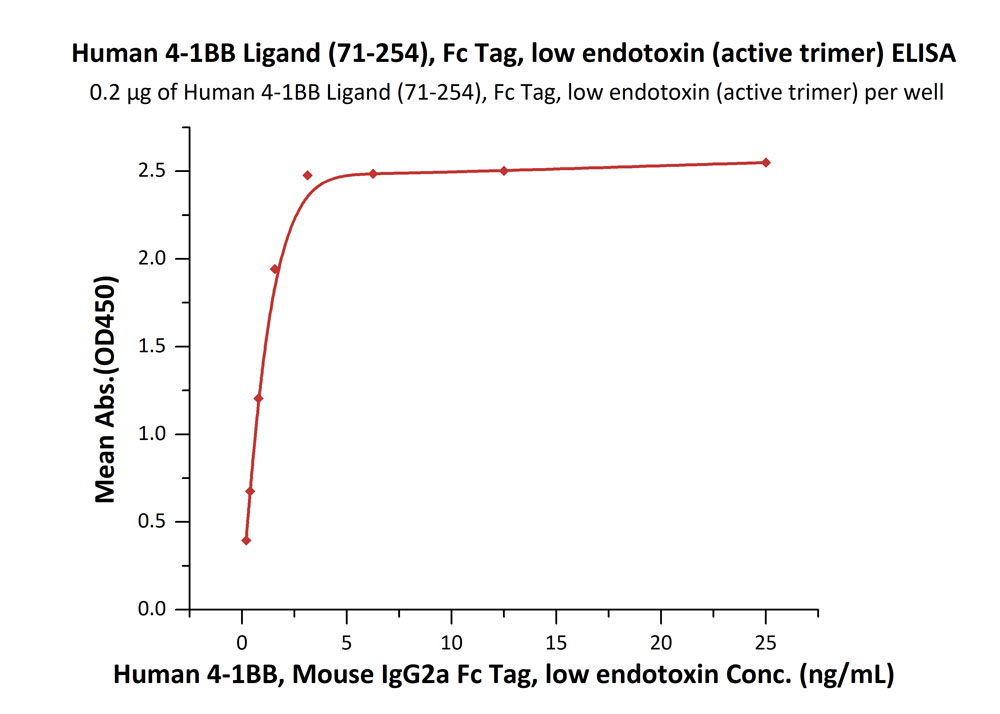

Immobilized Human 4-1BB Ligand (71-254), Fc Tag, low endotoxin (active trimer)  at 2 μg/mL (100 μL/well) can bind Human 4-1BB, Mouse IgG2a Fc Tag, low endotoxin  with a linear range of 0.2-3 ng/mL (Routinely tested).

Protocol

活性（Bioactivity）-BLI

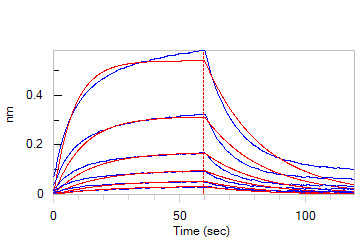

Loaded Human 4-1BB Ligand (71-254), Fc Tag, low endotoxin (active trimer)  on Protein A Biosensor, can bind Human 4-1BB, His Tag with an affinity constant of 425 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).

特别提示：本公司的所有产品仅可用于科研实验，严禁用于临床医疗及其他非科研用途！
